Revolving precision lathe centre series 100 KOP
Revolving precision lathe centre series 100 KOP
Picture not similar. Cutting tools will be delivered wihout insets.


✔ We are here for you: +49 6721 / 994167
✔ Mo. bis Fr. 08:00 am - 16:30 pm
✔ Your family business for 27 years

Revolving precision lathe centre series 100 KOP

€134.73 *

Prices incl. VAT plus shipping costs

1 x in stock

approx. 1-3 workdays

MK

Ø [mm]

  • 03-123KOP
  • 4260073571456
  • 0,670 kg
  • 1
  • 1
Revolving precision lathe centre, series 100 KOP, with 3 deep groove ball bearings in permanent... more
Product information "Revolving precision lathe centre series 100 KOP"

Revolving precision lathe centre, series 100 KOP, with 3 deep groove ball bearings in permanent lubrication for particularly smooth running and extended tip.

  • Tailstock center with high concentricity
  • Shank hardened and ground
  • Grains of chrome alloyed tool steel
  • especially easy run
  • maintenance-free permanent lubrication
  • lathe centre in universal design with 3 deep groove ball bearings
  • with extended tip 30°/60

Variant: Morse taper MK 2 - MK 4

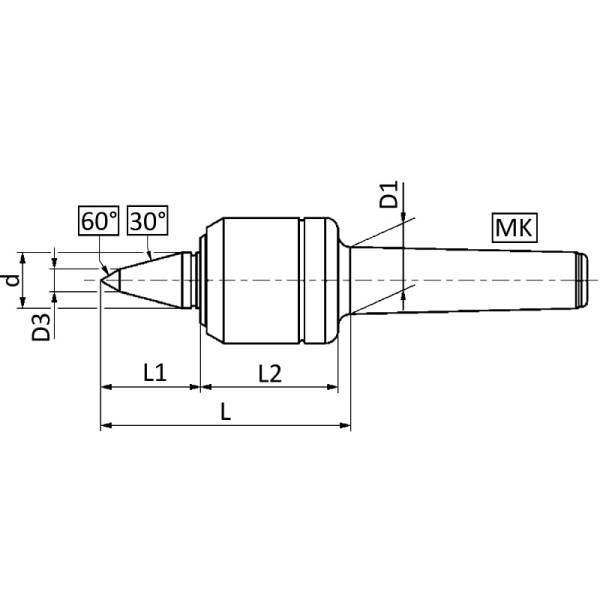

Product features *
Series: 100 KOP
MT: MT2
Ø [mm]: 45
d [mm]: 11
D1 [mm]: 17,78
D3 [mm]: 8
L [mm]: 93
L1 [mm]: 36
L2 [mm]: 49
Rotation speed max.: 5000
Workpiece max. [kg]: 100
Concentricity deviation max. [mm]: 0,005

* Data according to manufacturer / Mistakes reserved
