Stationary sliding table with 1 axis, CP

€809.88 *

Prices incl. VAT plus shipping costs

1 x in stock

approx. 1-3 workdays

Type

  • 18-CP-0
  • 4049794025635
  • 11,000 kg
  • 1
  • 1
Stationary sliding table, type CP, with 1 axis Stationary sliding table for use on milling... more
Product information "Stationary sliding table with 1 axis, CP"

Stationary sliding table, type CP, with 1 axis

  • Stationary sliding table for use on milling and drilling machines.
  • For applications in linear units with one axis in horizontal or vertical position
  • All load-bearing components are made of grey cast iron GG25.
  • Trapezoidal threaded spindle with adjustable nut.
  • Matt chrome-plated hand crank with vernier and zero setting wheel.

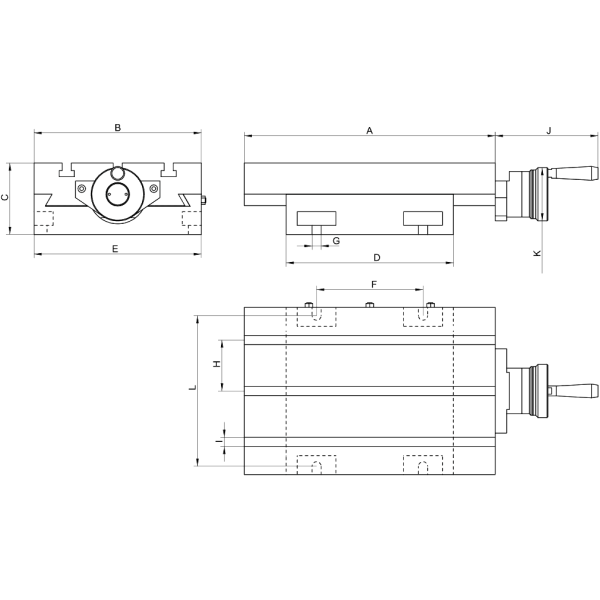

Product features *
A [mm]: 230
B [mm]: 164
C [mm]: 66
D [mm]: 164
E [mm]: 164
F [mm]: -
G [mm]: -
H [mm]: 50
I [mm]: 10
J [mm]: 56
K [mm]: 56
L [mm]: -
T-nuts: 3
X-Travel [mm]: 70
Resolution [mm]: 0.05
Thread lead: 2.0 mm
Workpiece max. [kg]: 55
Max. pressure [kg]: 500
Net Weight [kg]: 10

* Data according to manufacturer / Mistakes reserved
