Sine vice with spindle, 2 levels, TMV-SB2
Sine vice with spindle, 2 levels, TMV-SB2
Picture not similar. Cutting tools will be delivered wihout insets.


✔ We are here for you: +49 6721 / 994167
✔ Mo. bis Fr. 08:00 am - 16:30 pm
✔ Your family business for 27 years

Sine vice with spindle, 2 levels, TMV-SB2

€910.05 *

Prices incl. VAT plus shipping costs

5 x in stock

approx. 1-3 workdays

Size

  • 14-TMV-SB2-080
  • 4250916706435
  • 13,000 kg
  • 1
  • 1
Sine vice TMV-SB2 with spindle and graduations adjustable in 2 axes. swine vice made of... more
Product information "Sine vice with spindle, 2 levels, TMV-SB2"

Sine vice TMV-SB2 with spindle and graduations adjustable in 2 axes.

  • swine vice made of alloyed tool steel, hardened (base body HRC 40-45, vertical head HB220-250, vice with jaws HRC 58-62)
  • precision scale with vernier for exact angle adjustment
  • 360° rotatable, 60° tiltable
  • parallelism: 0.005 / 100 mm
  • squareness: 0.005 / 100 mm
  • toolmaker's vice is universally applicable
  • applications on precision grinding machines, drilling and milling machine, erosion machines etc.
Product features *

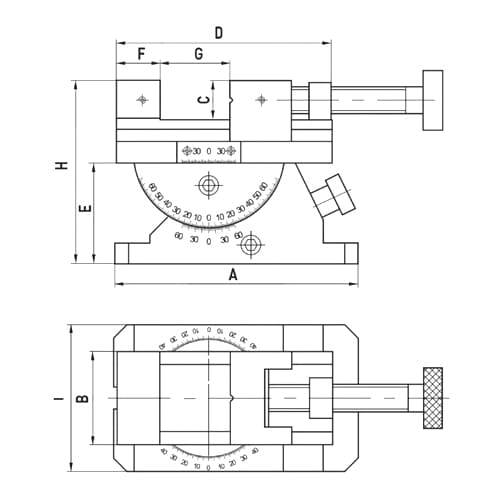

Series: TMV-SB2
A [mm]: 180
B [mm]: 70
C [mm]: 33
D [mm]: 165
E [mm]: 73
F [mm]: 30
G [mm]: 0 - 85
H [mm]: 139
I [mm]: 130
Net Weight [kg]: 12

* Data according to manufacturer / All rights of technical, optical changing and mistakes reserved!

Read, write and discuss reviews... more
Customer evaluation for "Sine vice with spindle, 2 levels, TMV-SB2"
10 Jan 2019
endlich glücklich

hatte schon lange nach so einem schraubstock gesucht und bin endlich fündig geworden, die genaue und schnelle winkeleinstellung machen mich glücklich
