Rotatable coordinate table with 2 axes, MG

€1,233.23 *

Prices incl. VAT plus shipping costs

1 x in stock

approx. 1-3 workdays

Order number: 18-MG-0
EAN: 4049794025819
Shipping weight: 22,500 kg
Purchase steps: 1
Minimum order: 1

Rotatable coordinate table, type MG Stationary sliding table for use on milling and drilling... more

Close menu

Product information "Rotatable coordinate table with 2 axes, MG"

Rotatable coordinate table, type MG

Stationary sliding table for use on milling and drilling machines, and for applications where, in addition to controlling the XY travel, the table needs to be rotated ±90°.

Coordinate table with 2-axes and rotating table ±90
All load-bearing components are made of grey cast iron GG25.
Trapezoidal threaded spindle with adjustable nut.
Matt chrome-plated crank handle with vernier and zero setting wheel.

Product features *

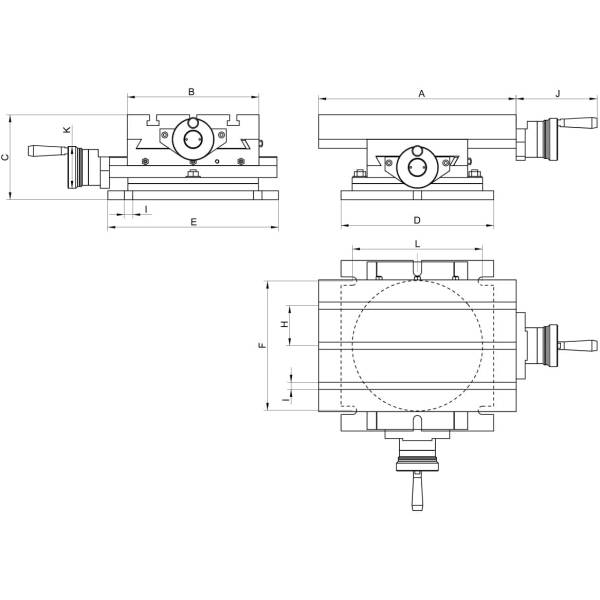

A [mm]:	230
B [mm]:	164
C [mm]:	120
D [mm]:	213
E [mm]:	250
F [mm]:	100
G [mm]:	12
H [mm]:	50
I [mm]:	10
J [mm]:	56
K [mm]:	56
L [mm]:	-
T-nuts:	3
X-Travel [mm]:	120
Y-travel [mm]:	110
Resolution [mm]:	0,05
Thread lead:	2,0 mm
Workpiece max. [kg]:	55
max. pressure [kg]:	500
Net Weight [kg]:	22

* Data according to manufacturer / Mistakes reserved
