ER Collet chuck DIN 69871, MINI
Picture not similar. Cutting tools will be delivered wihout insets.

✔ We are here for you: +49 6721 / 994167
✔ Mo. bis Fr. 08:00 am - 16:30 pm
✔ Your family business for 27 years

ER Collet chuck DIN 69871, MINI

€69.43 *

Prices incl. VAT plus shipping costs

Please note the minimum order value of 71.40 € *

26 x in stock

approx. 1-3 workdays

SK

für Spannzange

A [mm]

  • 13-7617-40-11M-070-ADB
  • 4250916762165
  • 0,950 kg
  • 1
  • 1
Collet chucks DIN 69871 form AD/B, for holding ER collets DIN 6499 (ISO 15488) slender... more
Product information "ER Collet chuck DIN 69871, MINI"

Collet chucks DIN 69871 form AD/B, for holding ER collets DIN 6499 (ISO 15488)

  • slender execution
  • alloyed case-hardening steel with a tensile strength in the core of min. 950 N/mm²
  • Tool holders are case hardened HRC 60 ± 2
  • Hardening depth 0.8 mm ± 0.2 mm
  • burnished
  • Accuracy: Cone angle tolerance < AT 3
  • max. concentricity error < 0.003 mm
  • precision ground and balanced G2.5 / 25,000 rpm
  • Collet chuck including MINI collet nut without ER collets

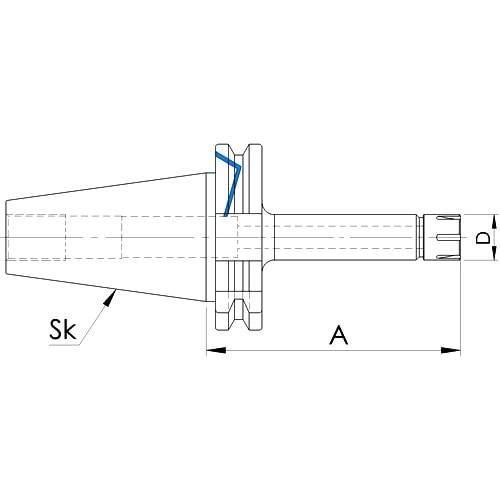

Product features *
Standard/s: DIN 69871
Shape: AD/B
SK: SK 40
For collet: ER 11 (4008E)
Clamping range [mm]: 0.5 - 7
A [mm]: 70
D [mm]: 16

* Data according to manufacturer / Mistakes reserved
