Double clamp, precision vice TLD
Double clamp, precision vice TLD
Picture not similar. Cutting tools will be delivered wihout insets.
Preview: Double clamp, precision vice TLD Preview: Double clamp, precision vice TLD


✔ We are here for you: +49 6721 / 994167
✔ Mo. bis Fr. 08:00 am - 16:30 pm
✔ Your family business for 27 years

Double clamp, precision vice TLD

ZENTRA
€1,084.34 *

Prices incl. VAT plus shipping costs

7 x in stock

approx. 1-3 workdays

Type

  • Order number: ZE-TLD-100
  • EAN: 4049794655443
  • Shipping weight: 23,500 kg
  • Purchase steps: 1
  • Minimum order: 1
Description
Description
Precision vice, centric clamping double clamp type TLD Centric clamping of 2 workpieces... more
Close menu
Product information "Double clamp, precision vice TLD"

Precision vice, centric clamping double clamp type TLD

  • Centric clamping of 2 workpieces of the same or different size or of 1 large workpiece
  • Guide surfaces hardened
  • Vice with pull-down effect
  • Centric clamping with six different clamping options.
  • Clamping repeatability 0.01 mm
  • Center clamping accuracy 0.01 mm
  • Alloy steel, hardened and ground, HRC 54

Scope of delivery: incl. hand crank, 2 fitting stones, 4 clamping claws

Variant: Type 100 / 150

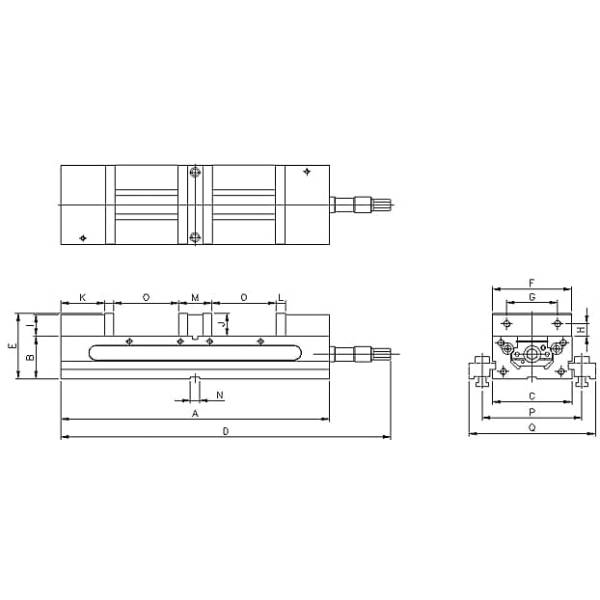

Product features *
Type: 100
A [mm]: 405
B [mm]: 63,5
C [mm]: 104
D [mm]: 459
E [mm]: 101,5
F [mm]: 102
G [mm]: 63,5
H [mm]: 17,5
I [mm]: 33
J [mm]: 38
K [mm]: 69
L [mm]: 15
M [mm]: 55
N [mm]: 18
O [mm]: 90
P [mm]: 143
Q [mm]: 195
Max. gripping force [kN]: 2000
Net Weight [kg]: 20

* Data according to manufacturer / Mistakes reserved
