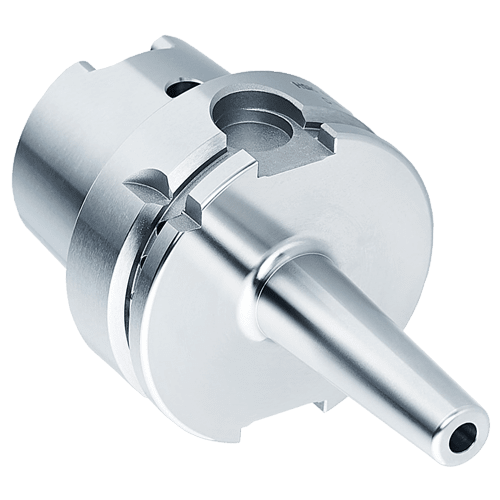

Shrink chuck 3° HSK-A DIN 69893
Shrink chuck 3° HSK-A DIN 69893
Picture not similar. Cutting tools will be delivered wihout insets.


✔ We are here for you: +49 6721 / 994167
✔ Mo. bis Fr. 08:00 am - 16:30 pm
✔ Your family business for 27 years

Shrink chuck 3° HSK-A DIN 69893

€151.58 *

Prices incl. VAT plus shipping costs

11 x in stock

approx. 1-3 workdays

d [mm]

A [mm]

  • 17-SH3063A-03-120
  • 4250916764855
  • 0,840 kg
  • 1
  • 1
Cutter holder DIN 69893 as milling machine accessories for holding tools with cylindrical shank... more
Product information "Shrink chuck 3° HSK-A DIN 69893"

Cutter holder DIN 69893 as milling machine accessories for holding tools with cylindrical shank by shrinking.

  • Shrink chuck 3° for tool shanks with a shank tolerance h6 made of HSS or carbide
  • made of high-strength tool steel with a tensile strength in the core of min. 800 N/mm²
  • Tool holders are case hardened HRC 58 - 60
  • Hardening depth 0.8 mm ± 0.2 mm
  • max. concentricity error ≤ 0,003 mm
  • precision ground and finely balanced G2.5 | 25,000 1/min
Product features *
HSK: HSK-A 63
Standard/s: DIN 69893 (HSK)
Plananlage: Yes
d [mm]: 3
A [mm]: 120
Balanced [1/min]: G2.5 | 25.000
Balluffchip-Bohrung: Yes
Innenkühlung: Yes

* Data according to manufacturer / Mistakes reserved
