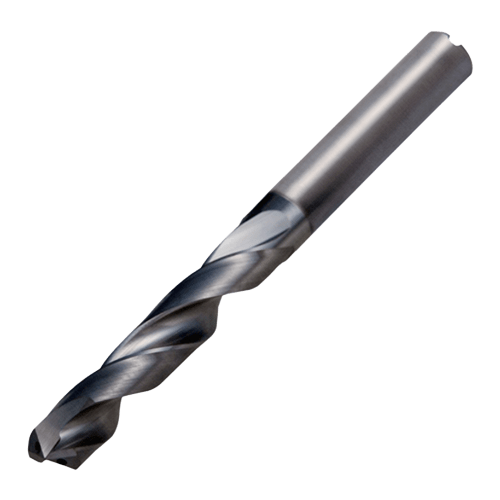

Solid carbide drill bit 5 x D, with shank DIN 6535-HA
Solid carbide drill bit 5 x D, with shank DIN 6535-HA
Picture not similar. Cutting tools will be delivered wihout insets.
Preview: Solid carbide drill bit 5 x D, with shank DIN 6535-HA Preview: Solid carbide drill bit 5 x D, with shank DIN 6535-HA


✔ We are here for you: +49 6721 / 994167
✔ Mo. bis Fr. 08:00 am - 16:30 pm
✔ Your family business for 27 years

Solid carbide drill bit 5 x D, with shank DIN 6535-HA

(1)
PREZIPART
€36.18 *

Prices incl. VAT plus shipping costs

Please note the minimum order value of 71.40 € *

Subsequent delivery

approx. 10 weeks

Ø [mm]

Version

mit Innenkühlung
  • Order number: 147116477
  • EAN: 4251102717013
  • Purchase steps: 1
  • Minimum order: 1
Description Evaluations 1
Description
Solid carbide drills with and without internal cooling This solid carbide drill IKZ is... more
Close menu
Product information "Solid carbide drill bit 5 x D, with shank DIN 6535-HA"

Solid carbide drills with and without internal cooling

This solid carbide drill IKZ is suitable for machining steel, cast steel, quenched and tempered and alloyed steels with a strength up to approx. 1300 N/mm².

  • Solid carbide drill bit in finest grain carbide
  • optimized chip flutes for improved chip flow
  • reinforced core for maximum stability
  • Special sharpening for optimal self-centering
  • Solid carbide drill IKZ with stronger cutting edge
  • increased footprint
  • Solid carbide drills with reinforced cross cutting edge and shank DIN 6535-HA
Product features *
for drilling depth: 5 x dia.
Design: with internal coolant
Standard/s: DIN 6535 HA
Coating: TIALN+
D1 m7 [mm]: 3.0
D2 h6 [mm]: 6
Angle of helix [deg.]: 30°
L1 [mm]: 66
L2 [mm]: 28
Point-angle [deg.]: 140°

* Data according to manufacturer / All rights of technical, optical changing and mistakes reserved!

Evaluations 1
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Solid carbide drill bit 5 x D, with shank DIN 6535-HA"
From: On: 16 Aug 2019
Perfekt für Kernlochbohrung

Perfekt für meine Kernlochbohrung M16
