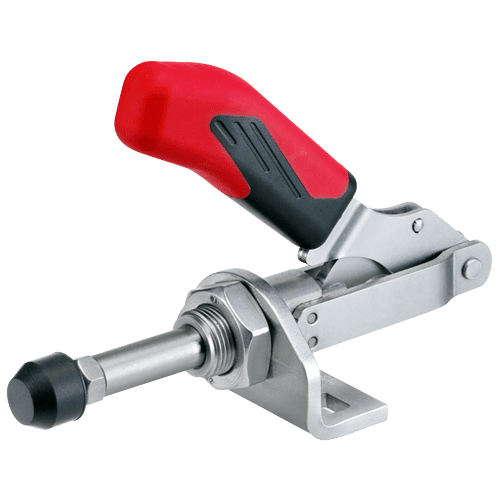

AMF Push-pull type toggle clamp, quick release

€32.45 *

Prices incl. VAT plus shipping costs

Please note the minimum order value of 71.40 € *

1 x in stock

approx. 1-3 workdays

Type

6841

Size

  • 720-299500-0
  • 4020772094096
  • 0,065 kg
  • 1
  • 1
Push-pull type toggle clamp AMF type 6841 with small angular foot and long push rod guide.... more
Product information "AMF Push-pull type toggle clamp, quick release"

Push-pull type toggle clamp AMF type 6841 with small angular foot and long push rod guide.

  • The quick release is galvanized and passivated
  • Compression and tension clamps. (push rod and hand lever running in parallel)
  • Long push rod guide with mounting thread and nut, galvanized and passivated
  • Rivets made of stainless steel, which, for sizes 2 and 3, run in hardened bushings. Lever-parts and rod of tempered steel. Bearings are pre-lubricated.
  • Lever can be set to any angle relative to base.
  • Ergonomic, oil-resistant handle with large grip surface and soft components
  • Complete with hardened and tempered galvanized pressure screw no. 6880
  • Variant - AMF Manufacturer numbers: 94094 / 94110 / 94128 / 94136 / 94151

Other sizes are available on request.

Product features *
Type: 6841
Size: 0
F1 [kN]: 0.8
F2 [kN]: 0.8
Pressing screw: M4 x 20
A [mm]: 6.5
B min. [mm]: 17
B max. [mm]: 33
D [mm]: 4.5
E [mm]: 13
H [mm]: 12
H1 [mm]: 47
Stroke [mm]: 16
HW min. [mm]: 12
HW max. [mm]: 20
K [mm]: 6.5
L1 [mm]: 66
L2 [mm]: 10
L3 [mm]: 52
M max. [mm]: 16
M2 [mm]: M10 x 1
N [mm]: 25
P [mm]: 16

* Data according to manufacturer / All rights of technical, optical changing and mistakes reserved!
