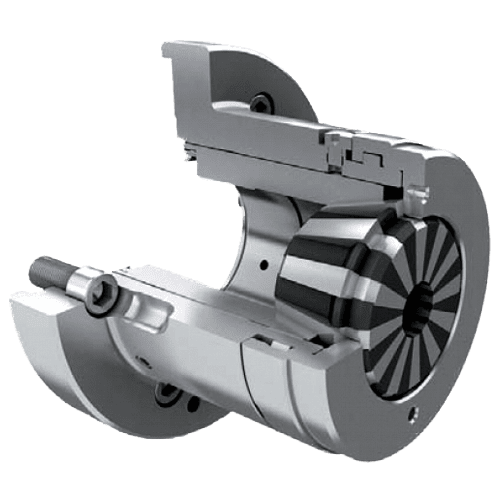

ORTLIEB Power collet chuck KSFB
ORTLIEB Power collet chuck KSFB
Picture not similar. Cutting tools will be delivered wihout insets.


✔ We are here for you: +49 6721 / 994167
✔ Mo. bis Fr. 08:00 am - 16:30 pm
✔ Your family business for 27 years

ORTLIEB Power collet chuck KSFB

€1,219.75 *

Prices incl. VAT plus shipping costs

Subsequent delivery

approx. 10 weeks

Type

  • KSFB26-004
  • 6,000 kg
  • 1
  • 1
Power collet chuck ORTLIEB, series KSFB. Ortlieb collet chucks with cylindrical seat or... more
Product information "ORTLIEB Power collet chuck KSFB"

Power collet chuck ORTLIEB, series KSFB.

  • Ortlieb collet chucks with cylindrical seat or according to DIN 55026
  • For pressure collets according to DIN 6343 or Rubber-Flex® RFC.
  • Lathe chuck in compact design for hydraulic clamping.
  • Power chucks with high concentricity for high speeds.

Variants: Type/Size 26 (161E) / 30 (163E) / 40 (173E) / 60 (185E)

Product features *
Series: KSFB
for collet: 161E (F32)
round max. mm: 26
hexagonal max. [mm]: 22
square max. [mm]: 18
Mount: A2-4
RPM max. [RPM]: 6,000
D1 [mm]: 112
D2 [mm]: 85
D3 [mm]: M50 x 1,5
D4 [mm]: 82.6
D5 (mm]: 3 x M10
L1 [mm]: 103.4
L2 [mm]: 30
L3 [mm]: 13
L4 [mm]: 22
L5 [mm]: 8
L6 [mm]: 2
Net Weight [kg]: 5

* Data according to manufacturer / All rights of technical, optical changing and mistakes reserved!
