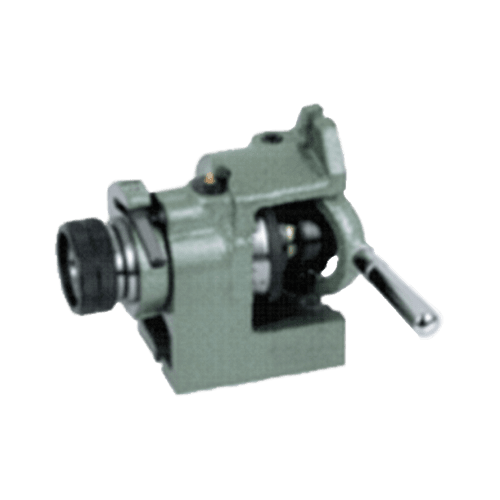

Collet chuck holder- Index dividing head type 267
Picture not similar. Cutting tools will be delivered wihout insets.

✔ We are here for you: +49 6721 / 994167
✔ Mo. bis Fr. 08:00 am - 16:30 pm
✔ Your family business for 27 years

Collet chuck holder- Index dividing head type 267

€269.12 *

Prices incl. VAT plus shipping costs

10 x in stock

approx. 1-3 workdays

Between the 23.12.2020 and the 06.01.2021 no orders will be delivered.

  • FW-CF5C-267
  • 4250916706749
  • 12,600 kg
  • 1
  • 1
Collet holder index Dividing head, type 267 Index dividing head for 5C collets (385E)... more
Product information "Collet chuck holder- Index dividing head type 267"

Collet holder index Dividing head, type 267

  • Index dividing head for 5C collets (385E)
  • Index dividing head with repeating device
  • Index division: 2, 3, 4, 6, 8, 12 and 24
  • Spindle holder for 5C collets
  • Dividing head can be used horizontally and vertically
  • with scraped clamping and stop surfaces
  • Max. Deviation from base surface, horizontal and vertical: 0.02 mm

External thread of spindle head 2-1/4" x 8`, overall height (horizontal, body only) approx. 170 mm, vertical approx. 200 mm, centre height 100 mm, groove width of fixing grooves 14 mm, distance centre/centre horizontal/vertical 110 / 165 mm

Supplied with operating instructions and test report in English.
