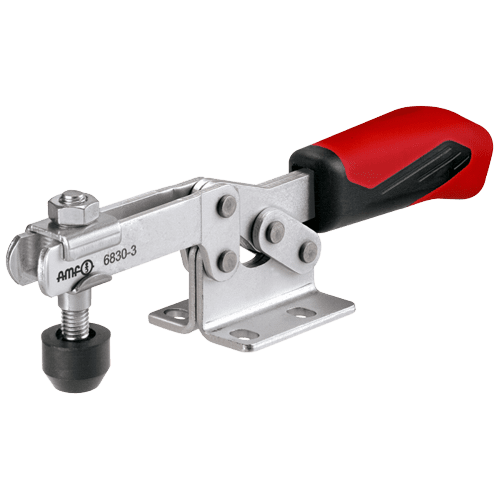

AMF Horizontal toggle clamp, quick release
AMF Horizontal toggle clamp, quick release
AMF Horizontal toggle clamp, quick release
Picture not similar. Cutting tools will be delivered wihout insets.
Preview: AMF Horizontal toggle clamp, quick release Preview: AMF Horizontal toggle clamp, quick release Preview: AMF Horizontal toggle clamp, quick release


✔ We are here for you: +49 6721 / 994167
✔ Mo. bis Fr. 08:00 am - 16:30 pm
✔ Your family business for 27 years

AMF Horizontal toggle clamp, quick release

ANDREAS MAIER GMBH & CO. KG (AMF)
€13.96 *

Prices incl. VAT plus shipping costs

Please note the minimum order value of 71.40 € *

1 x in stock

approx. 1-3 workdays

Type

Size

  • Order number: 720-299300-0
  • Hersteller-Nr.: 93005
  • EAN: 4020772093006
  • Shipping weight: 0,039 kg
  • Purchase steps: 1
  • Minimum order: 1
Description Evaluations 0
Description
Horizontal toggle clamp AMF with open clamping arm and horizontal, vertical and angular base.... more
Close menu
Product information "AMF Horizontal toggle clamp, quick release"

Horizontal toggle clamp AMF with open clamping arm and horizontal, vertical and angular base.

  • The quick release is galvanized and passivated
  • Rivets made of stainless steel, or sizes 2 to 6, run in hardened bushings. Bearings are pre-lubricated.
  • Ergonomic, oil-resistant handle with large grip and soft components
  • Lock washer for the thrust bolt at the end of the clamping arm.
  • Complete with tempered, galvanized clamping screw no. 6890
  • Variant - Type 6830: horizontal base, AMF Manufacturer's numbers: 93005 / 93013 / 93021 / 93039 / 93047 / 93054
  • Variant - Type 6832: vertical base, AMF Manufacturer's numbers: 93203 / 93211 / 93229 / 93237 / 93245 / 93252
  • Variant - Type 6833: Angled foot, AMF Manufacturer's numbers: 93179 / 93328 / 93336 / 93542

Other sizes are available on request.

Product features *
Type: 6830
Size: 0
F1 [kN]: 0.25
F2 [kN]: 0.4
Pressing screw: M4 x 25
A [mm]: 5
B [mm]: 28
C [mm]: 13.5
D [mm]: 4.6
E [mm]: 9
F [mm]: 5
H [mm]: 14.5
H1 [mm]: 23
H2 [mm]: 34
HW min. [mm]: -5
HW max. [mm]: 1
I [mm]: 7.5
K [mm]: 6.3
L1 [mm]: 79
M [mm]: 16
N [mm]: 25
P [mm]: 25.5
α: 90°

* Data according to manufacturer / All rights of technical, optical changing and mistakes reserved!
