Edge deburring unit with suction hose connection for aluminium processing, 11,000 to 30,000 rpm.

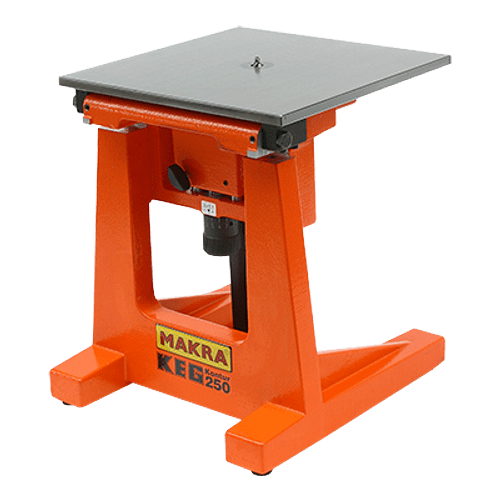

The MAKRA KEG 250 Kontur edge deburring unit was developed as a universal unit for inner and outer contours as well as for deburring longitudinal edges (chamfering). The portable device can be used for the entire range of machining operations, both in individual and small series production as well as in series production. The overall height is especially adapted to workbenches and mobile workshop trolleys.
- for aluminium machining
- infinitely variable speed regulation
- with double bearing milling spindle
- Solid shaft control electronics
Scope of delivery: Basic unit with hardened table top, 1 insert ring 30 x 7 m, collet chuck 6mm with clamping nut and sealing washer, with chip collection container and suction hose connection 43/35mm, operating tools and operating instructions
|Rotation speed [RPM]:||11,000 - 30,000|
|Milling engine [W]:||500|
|Table surface [mm]:||250 x 250|
|Overall height [mm]:||300|
|Input voltage [V/AC]:||230 / 50 Hz|
|Bevel height [mm]:||up to 4 (depending on material and tool)|
|Max. load cap. horiz. [kg]:||15|
* Data according to manufacturer / All rights of technical, optical changing and mistakes reserved!
