AMF Parallel underlays wavy No. 6344SP

Parallel supports Set for height compensation used as underlays for workpieces in a wide variety of machining operations. These wave-shaped parallel supports save time when clamping workpieces during grinding, milling, drilling, etc.

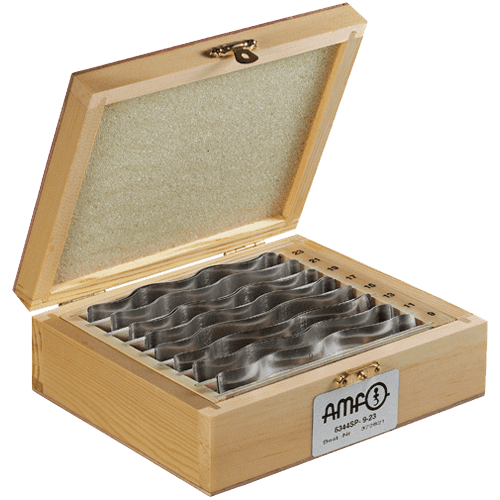

• Wave-shaped parallel supports in wooden box with hinged lid.
• Spring steel hardened and tempered.
• Precision ground.
• Height graduation 2 mm.
• Quality grade: Super precision ***
• Pair tolerance tp in height IT 5.
• Nominal dimensional tolerance in height ±0.004 mm.
• Remaining dimensions according to DIN ISO 2768 - m.

Advantage:

• No chips remain on the contact surface
• Parallelism of the clamped workpiece is not affected
• Several flat or single thin workpieces can be easily clamped.

Design
:Size 9-23, content 1 pair each (W x H):
0,3x9 / 0,3x11 / 0,3x13 / 0,3x15 / 0,3x17 / 0,3x19 / 0,3x21 / 0,3x23 mm.

Size 25-39, contents 1 pair each (W x H)
:0,3x25 / 0,3x27 / 0,3x29 / 0,3x31 / 0,3x33 / 0,3x35 / 0,3x37 / 0,3x39 mm.
